Monitor a CAN bus and send frames from the IoTSploit Toolkit

CAN Bus Monitor puts a SocketCAN interface on screen. You choose where the frames come from — a live bus, a recorded log, or a raw socket with no decoding — and the page shows the traffic it carries. Against a target that documents its CAN buses, the same page decodes each frame into signal values, and a separate composer sends a single validated frame back onto the bus.

Only transmit on a bus you are authorized to touch

A CAN frame can change a vehicle’s state. A diagnostic request, a command frame, or an arbitrary ID sent to the wrong bus can move an actuator, disturb a running ECU, or interfere with safety systems. Transmit only on a bench, a test rig, or a vehicle you own or are explicitly authorized to work on, and keep it on an isolated lab bus where nothing else depends on it. Receiving is not risk-free either: a controller in normal mode acknowledges what it reads, which is not electrically inert. When in doubt, start in Raw mode on a virtual interface and never send to a production vehicle.

Availability and requirements

CAN Bus Monitor is a desktop-only tool: it needs the operating system’s SocketCAN sockets and the backend that owns them, so the Web, Android, and iOS builds do not show it. Open it at Toolkit → CAN Bus Monitor.

It needs three things to be useful:

• A SocketCAN interface the kernel knows about. On Linux this is a physical adapter (PEAK, Kvaser, an 8devices USB2CAN, and so on) or a virtual vcan interface. The adapter must be brought up and given a bitrate outside IoTSploit — the application reads the link, it never configures it.
• The drv_socketcan device driver enabled on the backend. This is the driver that scans interfaces, opens the bus, and forwards frames.
• The IoTSploit service reachable. The device list, the command endpoint, the plugins, and the frame stream all run on the backend, not in the UI process.

Backend endpoints this page uses

If you are debugging a deployment, these are the calls behind the screen:

Purpose	Endpoint
List devices (the page keeps dynamic SocketCAN_* entries)	POST /api/list_devices/
Start, stop, dump, or send on an interface	POST /api/execute_device_command/drv_socketcan/
Raw frames for one device	WebSocket /ws/device/stream/<device_id>/
Decoded live capture or log replay	POST /api/execute_plugin/ with the CAN Live Capture plugin
Decoded capture snapshots	WebSocket /ws/device/stream/can_capture_<bus_id>/
Preview or transmit a target-defined frame	POST /api/execute_plugin/ with the CAN Frame Composer plugin
Score traffic or a log against a target’s buses	POST /api/identify_can_bus/
Read a log’s format and channels	POST /api/inspect_can_log/

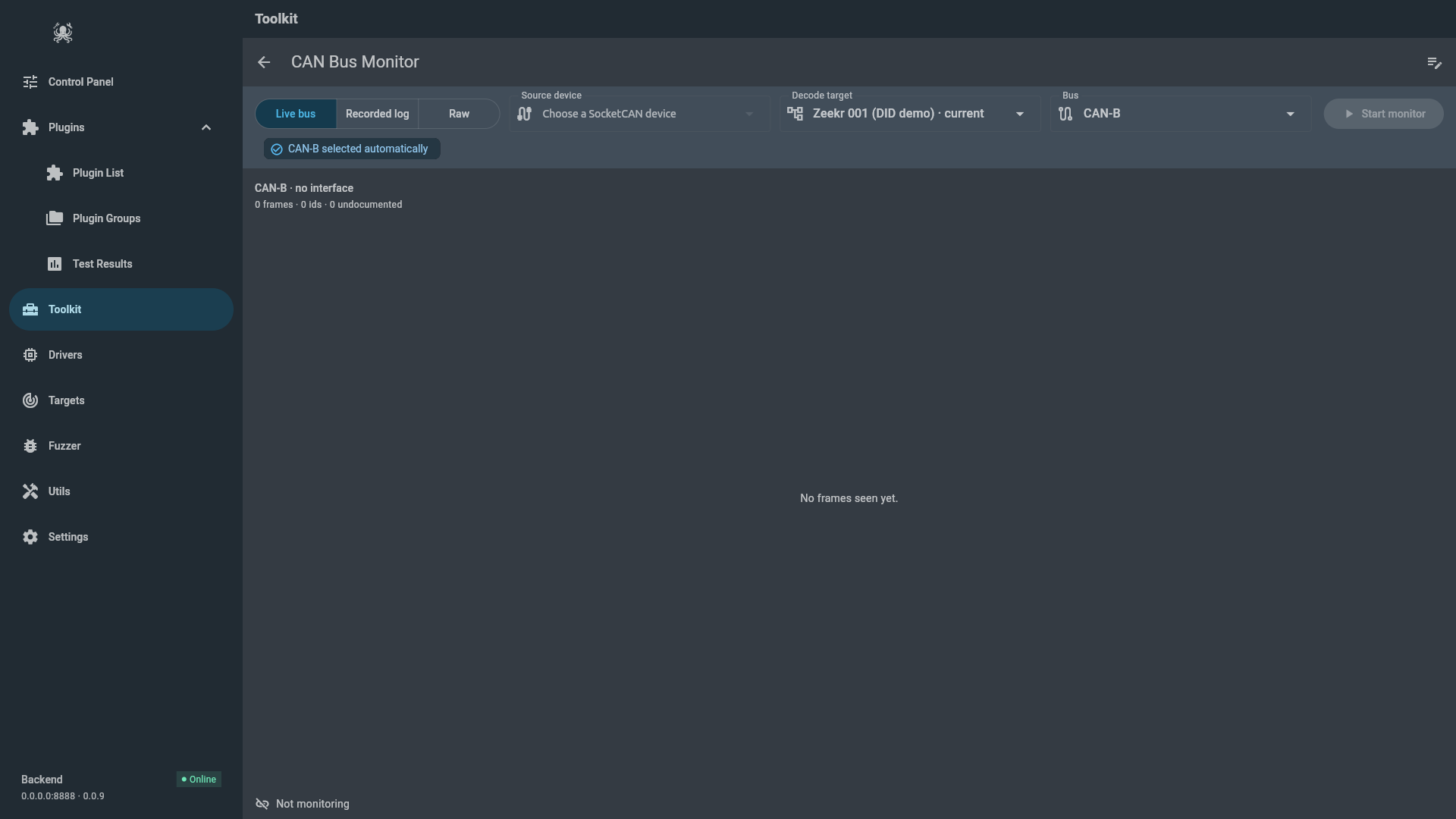

Choose a source and connect

The top-left selector decides what the whole page is for. It has three values, and only the inputs that value consumes stay on screen.

• Live bus — read a running interface and decode it against a target. This needs a Decode target and a Bus as well as a device.
• Recorded log — replay an .asc, .blf, .log, or .trc file and decode it. The file is uploaded to the backend and scored before it plays.
• Raw — read frames with no target and no decoding, and send a hand-written frame. This is the fallback when there are no definitions to decode against; picking it is an explicit choice, not the result of having no target.

Whichever source is selected, a frame in Raw mode is treated as bytes. The same bytes in Live bus mode are looked up in the target’s definitions. That is the central difference on this page, and it is why the source selector disables itself while a run is active.

Interface and connection state

The Source device list contains the interfaces the backend scanned, filtered to dynamic SocketCAN_* entries. Each row is a device_id such as vcan_001 and an interface name such as vcan0; the header shows the interface the traffic table is bound to, or no interface.

Above the table a strip reports the link as the kernel has it:

• virtual interface for vcan/vxcan, hardware interface for a real adapter;
• the configured bitrate, or bitrate not configured;
• CAN FD or classic, from the interface MTU;
• a controller-state chip: ERROR-ACTIVE is healthy, ERROR-WARNING is a warning, and ERROR-PASSIVE or BUS-OFF is shown as an error.

Bitrate and FD mode are deliberately read-only. They are host configuration, and a control here could only lie about what it changed. Hovering the strip shows the command that does configure them, for example:

sudo ip link set can0 type can bitrate 500000 dbitrate 2000000 fd on

To open a raw session, select the device and choose Open port. The page asks the backend to start the driver, then opens the frame socket. The footer reads Connected · N identities while the port is open and Disconnected when it is closed; Close port stops the driver and closes the socket.

For a decoded session, choose the Decode target and Bus and select Start monitor. The page runs the CAN Live Capture plugin in monitor mode and follows its snapshot stream. The footer reads Monitoring · N frames; Stop monitor cancels the backend execution.

Choosing the right bus

When a target documents more than one CAN bus, a radar button appears on the Bus field. Identify bus scores what is on the wire — six seconds of live traffic, or the whole log — against each bus the target defines and reports how many observed IDs matched. A wrong bus does not fail; it decodes every frame into a plausible wrong value, so this check is worth running before you trust a decode. The chip beside the field then says whether the bus was chosen automatically, manually, or identified.

Read the traffic table

In Raw mode the table has four columns:

Column	Meaning
ID	The arbitration ID in hex, as the driver reported it (0x123).
Frame count	How many frames with that ID have arrived since the table started.
DLC	The data length code of the most recent frame.
Data	The payload bytes in hex.

Frames are folded by ID: a repeated ID updates one row and increments its count rather than adding a row. Only the 100 most recent identities are kept, so a very busy bus does not grow the table without bound. The empty state distinguishes the two cases that matter: Open the port to monitor raw CAN traffic. before connecting, and No frames seen yet. after, when the bus is simply quiet.

In Live bus or Recorded log mode the table is richer. Each row shows the frame ID, the message name from the target (Undocumented when the target has no definition for it), the measured period, the count, and the last payload. Selecting a row opens an inspector with the decoded signals and their values. Totals above the table read N frames · N ids · N undocumented, and an undocumented ID is kept as a finding rather than hidden.

Switching source clears the decoded table and resets the run’s totals and bus-health notices, and choosing another target or bus resets the decoded view so one bus’s traffic is never shown under another bus’s definitions. The raw table keeps the identities it has already seen while the page stays open. After a raw send is confirmed, the composer clears the Data field so the same payload is not resent by accident; the ID and DLC stay.

Send a raw frame

The compose button in the app bar opens the raw composer when the source is Raw and the port is open. It has three fields:

• CAN ID (hex) — for example 7DF.
• Data length (DLC) — a number from 1 to 8.
• Data (hex) — whole bytes, for example 0102030405060708.

Nothing is sent until the server confirms it. The page validates the frame before it reaches the socket, and each check exists because the far side would otherwise turn a bad request into a stack trace or a frame of the wrong length:

• the ID must be hexadecimal;
• the DLC must be an integer between 1 and 8;
• the data must be an even number of hex digits;
• the number of data bytes must equal the DLC.

If the server refuses the frame (an invalid ID, a rejected payload, a driver that cannot send), the composer shows the reason and stays open. If no confirmation arrives within five seconds, it says so rather than reporting success: No confirmation came back within 5s; the frame may not have been sent. Only a confirmed send closes the dialog.

The composer sends a standard, classic frame. Extended IDs and CAN FD are handled by the target-aware composer and the driver, not by this dialog.

Receiving frames does not tell you what they mean

A raw ID and its bytes are not self-describing. 0x123 with DE AD BE EF is four bytes on the wire and nothing more until a definition says which bits are which. Reading meaning out of raw traffic is guesswork, and a confident guess is worse than an admitted gap.

The page only decodes when you give it a target. The target’s CAN definitions — imported as DBC, ARXML, or part of the target model — provide the frame names, signal layouts, scaling, and units. With a target selected, each frame is looked up and decoded against that target’s bus. Without one, the Raw table shows exactly what arrived.

Even with a target, two findings are not errors and are shown as they are:

• undocumented — the target documents no frame with this ID on this bus. The traffic is real; the target simply has not described it.
• decode failed — the ID is known but the bytes could not be decoded, with the reason shown.

The decode is only as good as the target. Bitrate, sample point, and the recording setup all decide whether the bytes are the bytes the sender meant, and a wrong bus produces a wrong-but-plausible decode. Treat a decoded value as a hypothesis to confirm, not a fact.

Bus faults are handled separately from traffic. A SocketCAN socket delivers controller faults alongside data, and an error frame carries an error class where a data frame carries an address. The page never lists one as a frame; it shows Bus fault: <description> (count), which is the difference between a quiet bus and a controller that cannot read the bus at all.

Transmitting against a target

For a target-defined frame, the compose button opens a different composer. It works signal by signal from the target’s catalogue: pick the frame, enter each active signal (all of them are required), and preview. Preview resolves and encodes the frame and returns the exact bytes without touching hardware — it works even on a host with no CAN interface.

Transmitting requires a fresh preview of the current form. Each preview carries a digest that covers the target, the frame definition, the values, the resulting bytes, and the channel. If anything changed between preview and transmit, the digest no longer matches and the send is refused rather than putting different bytes on the wire than the ones you approved. If the target is not marked active, the composer warns that its topology may be an incomplete extract and requires a separate acknowledgement before transmit.

The digest is a consistency guard, not authorization. It is not a one-time token, and repeating a confirmed call sends another frame. Authorization and rate limiting are deployment concerns. Bring the interface up and set its bitrate outside IoTSploit; the composer does not change link configuration.

Limitations

• Desktop only; no Web, Android, or iOS support.
• The link’s bitrate, FD mode, and up/down state are host configuration and are read-only here.
• One process should own an interface at a time; a second reader can conflict with an active capture or composer session.
• A decoded value is only as reliable as the target’s definitions and the bus you selected.
• A successful send means the bytes left the socket; it is not a security or compatibility verdict.

Troubleshooting

Symptom	What to check
No devices in the Source device list	The interface exists as a dynamic SocketCAN_* device; run ip link and confirm it is up
Open port fails	The backend cannot open the interface; check drv_socketcan is enabled and the interface name
Footer stays Disconnected	The frame socket did not open; confirm the service is reachable and the device id is current
No frames after connecting	The bus is quiet, the bitrate/termination is wrong, or nothing is transmitting
bitrate not configured	Configure the link outside IoTSploit, then reopen the port
Bus fault: …	A controller fault, not traffic; inspect the wiring, termination, and bitrate
A frame shows as Undocumented	The target has no definition for that ID on that bus; import one to decode it
Send returns a validation message	Fix the ID, DLC, or data mismatch the message names
Send reports it may not have been sent	No confirmation within five seconds; check the backend and the interface

Verified lab run

The receive and send paths were reproduced on an isolated virtual bus, with no vehicle or adapter involved:

1. A vcan0 interface was created and brought up (sudo modprobe vcan; sudo ip link add dev vcan0 type vcan; sudo ip link set up vcan0). A virtual bus loops transmitted frames back to every socket on it, so one machine can be both ends.
2. The backend’s scan reported the interface as SocketCAN_vcan0 (device_id vcan_001), flagged virtual, FD-capable, with no bitrate — exactly what the CAN screen lists.
3. Receive: an independent peer socket put one harmless frame on the bus, ID 0x123, data DE AD BE EF. The drv_socketcan driver received it and classified it as data with id=0x123, data=deadbeef, dlc=4, and metadata interface=vcan0, is_extended_id=false, is_fd=false, is_remote_frame=false.
4. Send: the driver’s send command put 0x123 / DEADBEEF back on the bus, and the peer socket received it.
5. Validation: a send without a payload was refused with send requires data, and a send without an ID with send requires a CAN id.
6. The driver’s status then read interface=vcan0, owns_link=false, confirming it used a link it did not bring up and left it as it found it.

This is the software path the app uses on any SocketCAN interface. A physical vehicle bus is not required to verify it, and none was attached.
